0 User Information and Safety General Information

Table of Contents

General Information

This chapter includes information related to the product and its usage.

Product Details

Product Names

MConn7 / MConn10 / MConn12.3

Introduction

The MConn7, MConn10, and MConn 12.3 are MRS Electronic's new generation of Connected Displays. They come with a powerful 32-bit multi-core ARM Cortex-A9 processor, 2D, 3D, and Vector Graphics hardware acceleration. Featuring a multi-touch PCAP touchscreen, operators can take advantage of many gestures found on tablets today, including pinch-to-zoom, rotation, flick, and more.

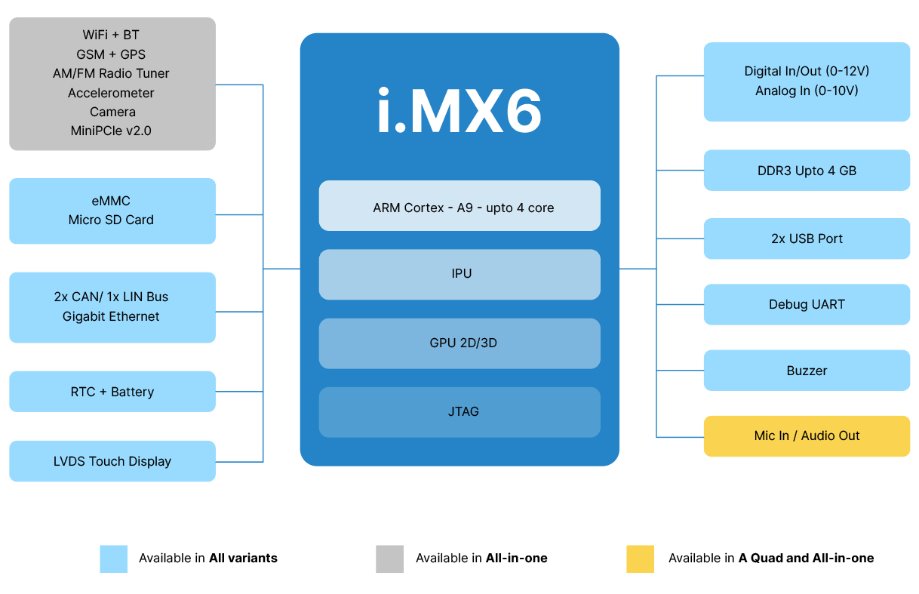

MConn Overview
Available Variants of MConn

Product Variants

  • Basic
  • AVQuad
  • All-in-One

The variants are categories with features MConn supports. It's equipped with a powerful automotive-grade IMX6 processor. Therefore, it is available in single-core as MConn Basic and quad-core in AVQuad (audio and 4x parallel analog video cameras) or All-in-one, equipped with every feature MConn offers, including Wi-Fi, BT, tuner, etc.

Screen Sizes

The display is available in three standard screen sizes: 7“, 10.1“, and 12.3“. Depending on the project volume, customization in other sizes is also possible.

Processor and Performance

The MConn displays are equipped with powerful IMX6 processor.

Technical Data

  • Housing PC-ABS

  • Connector

    • 1: TE AMPSEAL 35pol.
    • 2: TE AMPSEAL 14pol. (optional)
    • 3: RJ45
    • 4: 2x USB-A

  • Colour TFT Display

    • 7" (1024 x 600, 800 cd/m²)
    • 10.1" (1280x800, 800 cd/m²)
    • 12.3" (1920x720, 800 cd/m²)

  • Temperature range (acc. to ISO 16750-4) Operation -20°C...+70°C Storage -30°C...+80°C

  • Environmental protection acc. to IEC 60529 IP 40

  • Current consumption max. 260 mA @ 24 V/ 460 mA @ 12 V

  • Total inputs and output 22:

    • 12 Digital inputs, 2 of them with Frequency inputs
    • 6 Analog inputs (0...12.5V)
    • 4 Digital outputs (High Side, 2A each)

  • 1x Buzzer

  • Multitouch PCAP touchscreen (configurable)

  • Dimmable backlight

  • Analog Camera 4x in Parallel

  • Digital Ethernet Camera - Multiple depend upon resolutions

  • Operating voltage 9...32 V (Code B at 12 V, Code E at 24 V acc. to ISO 16750-2)

  • 11.6...32 V for 10 V Reference voltage output

  • Overvoltage protection ≥ 33 V

  • Reverse polarity protection

  • CAN Interfaces 2x ISO 11898-2:2016 capable CAN Transceiver

  • Other interfaces LIN, Ethernet

  • E1 approval 06 9864

  • Electrical tests

    • Acc. to ISO 16750 – 2 resp. -4: Short circuit protection Reverse polarity test Ground offset Disconnection of pins and connector Long-term overvoltage at TMax-20K Storage test at TMax and TMin Operation test at TMax and TMin Starting profile (form. Pulse 4 acc. to ISO 7637) Superimposed alternating voltage Slow decrease and increase of supply voltage Momentary drop in supply voltage Reset behaviour at voltage drop

    • Acc. to ISO 7637 - 2: Pulse 1, 2a, 2b, 3a, 3b

    • Acc. to ISO 10605: Display ESD-resistant up to 15 kV all other ESD-resistant up to 4 kV

Operating System and Software Compatibility

The display operates on Yocto OS kernel version 4.19.35 and is compatible with QT 5.12.9, providing a stable and versatile platform for various applications.

MConn is an ideal choice for professionals in automotive, agriculture machines, special vehicles, and industries.

Reference App

To facilitate the developer, MRS-Electronic developed a Reference Application written in QT/QML. This application shows how to use different MConn interfaces for custom applications.

This document refers to the Reference App to better understand the system's components, interactions, and customization abilities.

Intended Users

These instructions address trained experts familiar with the software's programming and technical understanding. Due to their expert training, knowledge, experience, and knowledge of the relevant standards and regulations, trained experts can assess the tasks assigned to them and recognize possible dangers.

Document Conventions

This document contains prompt boxes for users to consider before making certain calls to action. The measures for averting risks described in the instructions must be implemented to avoid the risk of property damage or personal injury.

Important
A notice of this sort denotes an important prerequisite to completing the process.
Information
A notice of this sort denotes an additional piece of information that can be helpful for the user.
Danger
A notice of this sort denotes a danger that may arise.
Warning
A notice of this sort denotes a warning message.

Validity

These instructions become valid when the product is transferred from MRS Electronic to the customer. Changes to these operating instructions are possible at any time and without the specification of any reason. The current version of this document replaces all previous versions of user manuals ever released.

Copyright Information

This manual, in its entirety, is copyrighted to © MRS Electronic GmbH and protected by international copyright laws. All rights are reserved. No part of this manual may be reproduced in any form without the written permission of MRS Electronic GmbH & Co. KG. All trademarks are the property of their respective owners.

MRS Electronic GmbH & Co. KG has compiled this document with the utmost diligence while keeping the current state of technology in mind. However, MRS Electronic GmbH & Co. KG will not assume any liability or responsibility for any errors in content, form, or missing updates that result in damages or drawbacks.

Technical Support

This section provides you information related to technical support from the manufacturer.
Manufacturer Name MRS Electronic GmbH & Co. KG
Address Klaus-Gutsch-Str. 7, 78628 Rottweil, Germany
Telephone +49 741 28070
Website www.mrs-electronic.com/en/service-support/support
E-mail support@mrs-electronic.com

Warranty Conditions

See the General Terms and Conditions of MRS Electronic GmbH & Co. KG at www.mrs-electronic.com/en/terms.
